Ideal solution for bending copper and aluminum busbars with high efficiency, automation, and precision

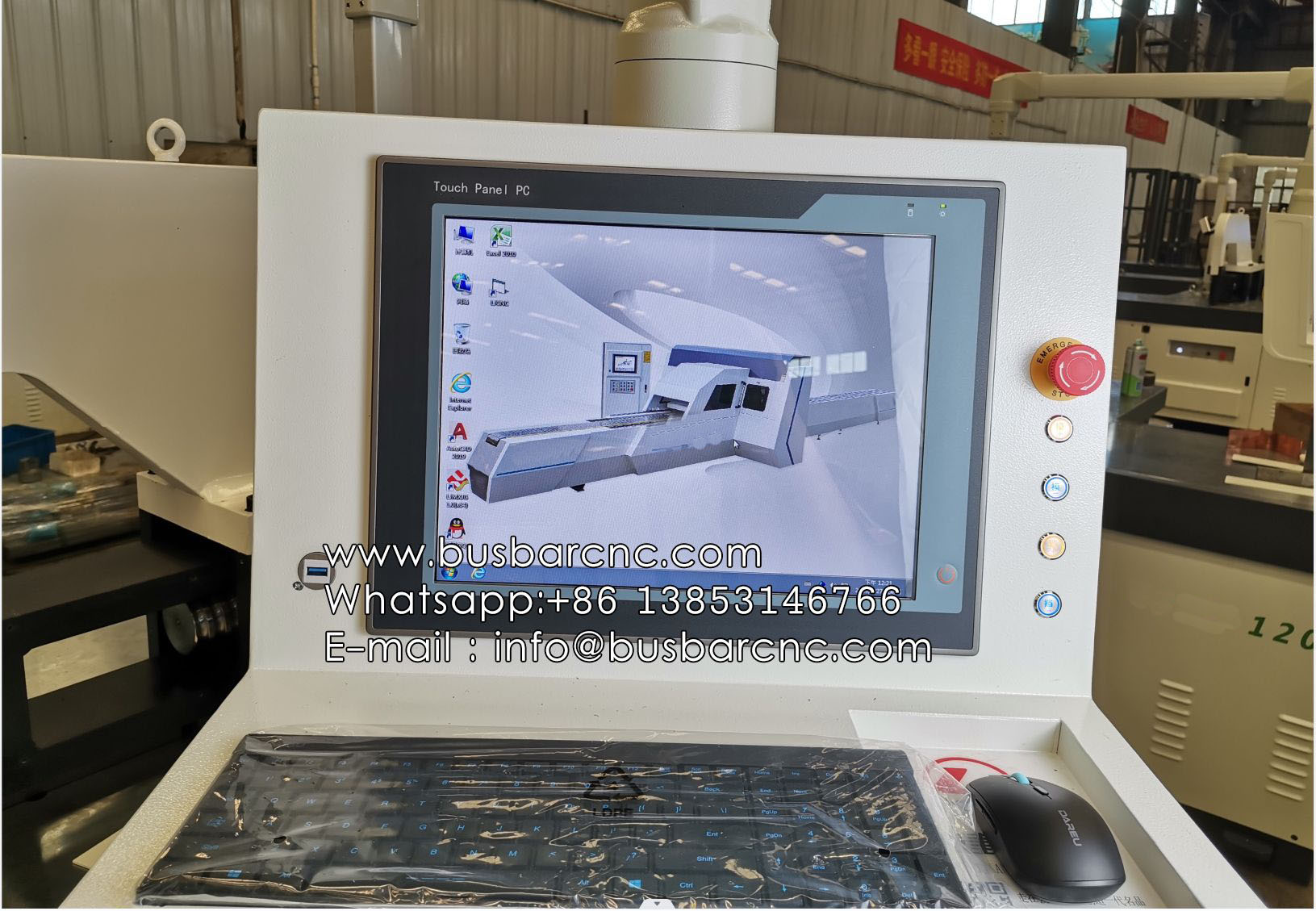

SASO certified CNC control system with self-developed CAD/CAM software
Patented "closed bending" technology for superior mechanical strength and precision
High-inertia servo motors ensure stable operation in Saudi climate conditions
Fully compliant with Saudi voltage standards (13.8kV - 69kV)
Linear guide rail system for balanced force distribution
Seamless integration with CNC busbar punching machines
Low maintenance requirements and operational costs
Applications:
Electrical substations and power distribution systems
High and low voltage switchgear
Power transformers
Bus duct systems
Renewable energy projects
Heavy electrical industries
Why Choose BMC®?
With local technical support in Riyadh and Jeddah, BMC® provides complete busbar processing solutions that meet Saudi Electricity Company specifications, offering superior after-sales service and maintenance support.
Technical Parameters
Model
HQ400-1200B
HQ400-2000B
Nominal Pressure
400KN
400KN
Gauge Length
1200mm
2000mm
Flat Bend Max Size
15x160mm
15x200mm
Vertical Bend Max Size
12x120mm
12x120mm
Parameter Comparison
Spindle Travel
200mm
200mm
Main Motor Power
7.5kw
7.5kw
Gauge Accuracy
±0.15
±0.15
Bending Accuracy
±0.3
±0.3
Machine Dimensions
3500x1450x1850mm
4300x1450x1850mm
Machine Weight
3100kg
3300kg
Optional Accessories:
Servo spindle motor: Rexroth
Ball Screw: TBI
Precision Planetary Gearbox: SEW-Eurodrive
Programmable Controller: Beckhoff
Lead Screw: Nanjing
Computer: Beijing Qiyang
AC Contactor: Siemens
Linear Guideway: Hiwin
Random Accessories:
A set of random maintenance tools
A pack of spare seals
A foot switch
Why Choose BMC®?
We provide complete busbar processing solutions with full quality assurance and excellent after-sales service, backed by extensive experience in the Saudi and Gulf markets.
